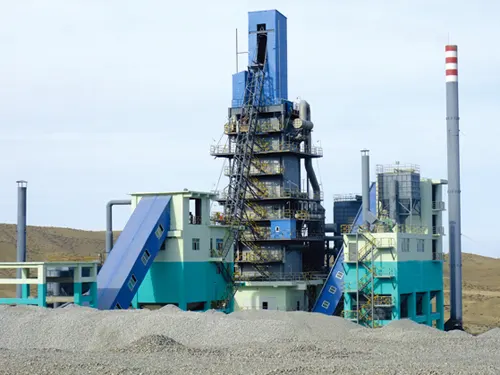

Burner Beam Vertical lime kiln, TF vertical lime kiln

The Burner Beam Vertical Lime Kiln (Beam Kiln) represents one of HBMER's flagship products in the lime calcination industry. As a leading rotary kiln supplier in China, HBMER has refined this technology by integrating extensive operational experience from domestic installations with three proprietary patented innovations:
Ridge-Type Burner Beam – Optimized beam design for enhanced heat distribution
Reverse Layout Calcination Process – Strategic burner arrangement for uniform calcination
Flameless Combustion Technology – Reduced NOx emissions and improved temperature control
These advancements have significantly enhanced the calcination process, delivering superior performance and product quality.

TEL: +86-13313316090

Email: mer_kaye@163.com

Inquiry Now

Description

Burner Beam vertical lime kiln, lime calcination plant, lime processing plant

Working Principle：
The Burner Beam Vertical Lime Kiln features a single-shaft vertical structure with specially designed water-cooled burner beams installed at multiple levels. The kiln is divided into three functional zones:
Preheating Zone: Limestone descends from the top, preheated by rising hot gases from the calcination zone
Calcining Zone: Burner beams inject fuel and air through multiple nozzles, providing uniform heat distribution across the entire kiln cross-section
Cooling Zone: Calcined lime is cooled by rising air before discharge
The patented ridge-type beam design and reverse layout calcination ensure optimal heat transfer and complete, uniform calcination throughout the kiln.

Technical Specifications：

Parameter	Specification
Daily Production Capacity	80 – 500 tons
Production Flexibility	50 – 110% of rated capacity
Fuel Types	All fuel types, including low-calorific value gases (≥650 kcal/Nm³)
Calcination Modes	Compatible with both soft-burning and hard-burning processes
Heat Consumption	Low (competitive with leading technologies)
Lime Quality	High activity, low under-burning and over-burning rates
Structure	Simple design with minimal special-shaped refractory bricks

Key Advantages：
Exceptional Fuel Flexibility: Utilizes a wide range of fuels, including low-calorific value gases down to 650 kcal/Nm³—ideal for steel plants with by-product gases.
Dual Calcination Capability: Accommodates both soft-burning and hard-burning processes, providing flexibility to meet diverse customer requirements.
Wide Production Range: Capacity from 80 to 500 tons per day with excellent turndown ratio (50–110%), allowing quick response to market demand fluctuations.
Superior Product Quality: Produces high-activity lime with minimal under-burning and over-burning rates, ensuring consistent quality for demanding applications.
Simplified Construction: The kiln features a straightforward design with reduced quantities of special-shaped refractory bricks. Compared to other kiln types, the masonry process is simpler and construction is more convenient, reducing installation time and costs.
Low Operating Costs: Simple equipment design results in low failure rates and minimal maintenance requirements. Combined with low heat consumption, this delivers excellent operating economics.
Compact Footprint: Small land occupation and flexible layout options make it suitable for sites with space constraints.
High Cost-Performance Ratio: Low investment requirements combined with superior operational performance deliver exceptional value.

HBMER Advantage：
As a specialized rotary kiln supplier in China, HBMER brings extensive experience and continuous innovation to every burner beam kiln project:
Proven Technology: Three proprietary patents enhance traditional burner beam design for improved performance
Practical Experience: Refinements based on extensive operational data from domestic installations
Comprehensive Service: Complete solutions from design and manufacturing to installation and commissioning
Cost-Effective Solutions: Optimized designs that balance performance with investment efficiency
The HBMER's Burner Beam Vertical Lime Kiln represents the ideal choice for producers seeking a reliable, flexible, and cost-effective calcination solution with exceptional product quality and low operating costs.
